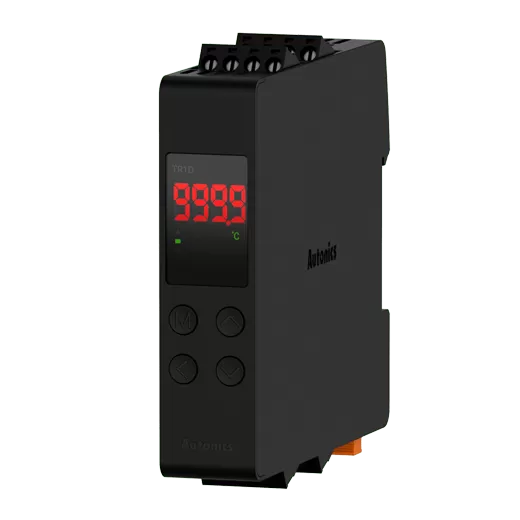

Autonics TR1D Series

Slim Single Display PID Temperature Controllers

The TR1D series slim single display PID temperature controllers feature high-speed sampling cycle rate of 50ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with simultaneous heating and cooling control. The space-saving design with 22.5mm width and DIN rail bracket allows easy installation in limited spaces. The front display can be easily used to set the control status and parameters.



#W22.5mm   Connector terminal   #Sampling period   #Screen protection   Single-display #DIN Rail   RS485   #Transmission output   #Alarm output   #CT input   #High-speed sampling   #SSR drive   #Heating&cooling   #DAQMaseter   #Slim

Enquiry
Categories: , Brand:

Compact, space-saving design with 22.5mm width size

50ms high-speed sampling and ±0.3% display accuracy

Simultaneous heating and cooling control function

Switch between current output and SSR drive output

Easy mount on DIN rails (patent) 1

RS485 (Modbus RTU) communication output model available – Protocol: Modbus RTU or ASCII – Communication speed: up to 115,200 bps

Parameter setting via PC (USB or RS485 communication) – Comprehensive device management software (DAQMaster) provided

Heater disconnect alarm function (CT input) – Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP

Screen protection function

*1 Korea Patent Registration 10-2019-0158569

*Korea Design Registration 30-1065663, China Design Registration 202030164351.2
